Triangle Introduces The SECRET - LCR7–– A New In-Wall Loudspeaker

February 24, 2023

PRESS RELEASE







NEW 2023
The SECRET in-wall speaker range from TRIANGLE, which has over 40 years of

experience and a unique acoustics expertise, now unveils the new LCR7.

See the introductory video on YouTube

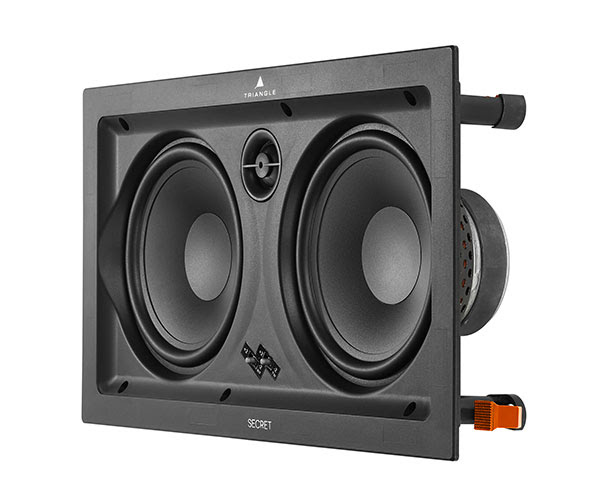

The SECRET LCR7 is a 2-way in-wall speaker equipped with two 170mm midrange/bass drivers with a polypropylene membrane, and a 25mm adjustable silk dome tweeter.

VERSATILITY: MUSIC & HOME THEATER

Designed for both stereo and home theater use, the LCR7 is a speaker that excels in both horizontal and vertical positions. You can use them as front, center and surround channels in your stereo and home theater setups.

LCR7 front view in integration

EASY SETUP

Thanks to its mounting system and shallow depth of 10 cm, the LCR7 is easy to install and guarantees a perfect t on any type of wall.

A mounting template is provided with the speaker for accurate cutting and positioning.

LCR7 side view

DISCREET INTEGRATION

Its ultra-thin and magnetic protection grille can be painted to match the colors of your interior.

Custom LCR7 views

ACOUSTIC EXPERTISE

The bandwidth of 60 Hz to 20,000 Hz makes it possible to accurately reproduce every detail of your favorite music or movies. Offering an ef ciency of 90dB and a maximum power handling of 140W, the LCR7 will adapt to any type of ampli er.

LCR7 rear view

The crossover also features a protection against potential power surges coming from the ampli er.

The terminal has push buttons for easy connection of speaker cables with cross-sections thickness ranging from 1.5 to 5mm2

ACOUSTIC SETTINGS

For optimum performance, the speaker adapts to the acoustic environment thanks to various sound settings. The low and high frequency levels can be adjusted in 3 positions (-2dB, 0 and +2dB) and the adjustable tweeter, makes it possible to optimize the listening position.

1 x 25 mm Ajustable Tweeter

2 x 17 cm Bass-Medium

Power Handling 140 W

Low and high frequency levels can be adjusted in 3 positions
(-2dB, 0 and +2dB)

THE HOME THEATER

OF YOUR DREAM

Take the home theater experience to the next level by creating a high-performance multichannel system with a combination of TRIANGLE in-wall speakers from the SECRET

• 3.1 Setup

• 5.1 / 7.1 Setup

Place two LCR7 speakers vertically for the front channels and 1 spea- ker horizontally for the center chan- nel. Then add a subwoofer such as the TALES 340 to support the low frequencies for a spectacular com- bination.

The IWT7 speakers are excellent partners for the effects channels, place them on the side and rear walls for a 360° sound immersion.

• 5.1.4 / 7.1.4 Setup

The circular ICT7 / EMT7 in-wall speakers can be placed in the cei- ling to reproduce vertical sound effects and take advantage of the latest Dolby Atmos and DTS-X technologies.

Availability : Available now. Finishes : Black - White grill

TYPE

Surround speaker

BASS/MEDIUM

6,5 inches - Polypropylene Membrane

TWETEER

1 inch - Silk Dome - Adjustable

SENSIBILITY (DB/W/M)

90 dB

BANDWITH (+/- 3dB)

60 Hz - 20 KHz

IMPEDANCE (Ohms)

8 Ω

POWER HANDLING (WATTS RMS)

140 W

FURTHER INFORMATIONS

Public Price : 249€ /piece

TECHNICAL SPECIFICATIONS CUT OFF FREQUENCY

2,7 KHz

TWEETER/WOOFER SETTINGS

-2 / 0 / +2 dB

NEEDED OPENING

14,48 x 7,48 inches

MINIMUM INSTALLATION DEPTH

3,9 inches

DIMENSIONS (W X H X D)

15,8 x 8,9 x 3,5 inches

BRUT WEIGHT (KG)

4.4 lbs

EAN CODE

                                   3660216007094
